RC01B Remote Control

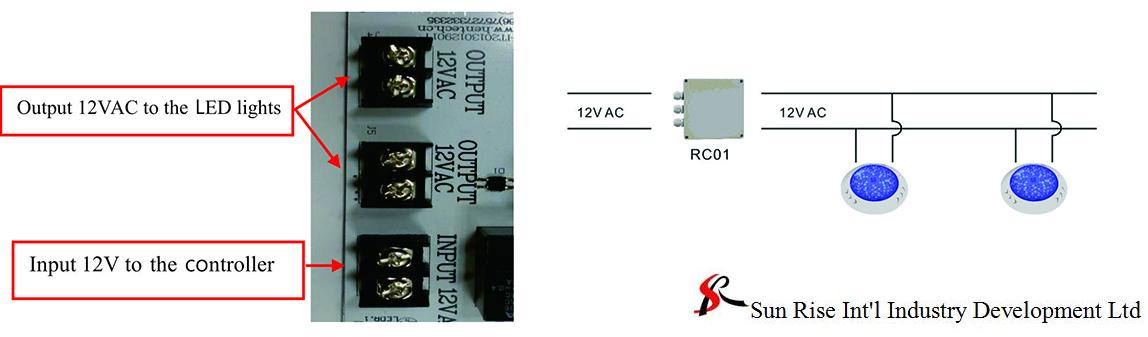

Input: 12VDC, Output:12VAC
RFcontrol Without transformer
Control range up to 100 meters.
Product description: RC01B Remote Control
INQUIRY

Remote Control

Item NO.: RC01B

• RFcontrol Without transformer

• Input: 12VDC, Output:12VAC
• One controller can control up to 12 lights according to the capacity of the transformer used.

• Control range up to 100 meters.

• 2 year guaranty

Parameter:

Basic Parameter for RC01B (no transformer)
• Pack Volume: 135mm×135mm×45mm
• Weight: 0.55KG
• Work temperature: -40ºC ～ +70ºC
• Work humidity: 10% ～ 90% RH
• Control Distance: 100M

Electric Parameter

• Input Voltage: AC12V
• Input Current: 0.5A-30A(according to the total LED lights you use)
• Output Voltage: AC12V
• Output Current: 0.5A-30A(according to the total LED lights you use)
• Dynamic Current: According to your loads (standard:0.5A)
• Quiescent Current: < 6mA
• RF Sensitivity(dBm) -101
• Provide Power: 360VA
